SB Series, Constant Temperature Baths
Precise
Control of Process and Temperature with Heating Cooling Elements of
Fluoropolymer
Constant • Temperature • Bath
The SB SERIES is
compatible with virtually any process solution such as sulphuric, acetic or
nitric acid etc., various strippers, KOH and HF. The SB offers excellent process

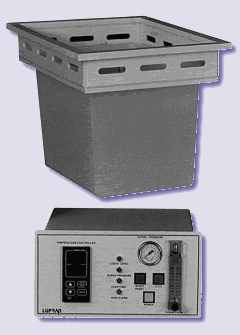

control and an ultra-clean semiconductor grade process environment. The SB
consists of two major components, a process module which is integrated with a fluoropolymer
immersion heater and a Process Control Module. Each SB includes a network of
safety features and is supplied complete with all necessary components such as
process thermocouples, liquid level sensors etc. A wide variety of models and
options are available which will enable you to tailor an SB to meet your
specific process requirements.
Click here to view diagram
STANDARD FEATURES
Process Module:
- Fluoropolymer
process tank.
- PTFE fluoropolymer
heater with patented (patent numbers 4,553,024 - 4, 158,764) N2
purge feature, 110 or 208, I phase, wattage dependent on model ordered.
- Fluoropolymer
sleeved J-type process thermocouple.
- J-type
over-temperature thermocouple.
- Liquid level sensor
(capacitance type).
Process Control
Module:
- Digital PID based
temperature controller.
- Heater purge
controls.
- All operational
switches.
- Kydex Enclosure.
BENEFITS
- Use in any acid
including HF.
- Fast Ramp Up and
Temperature Recovery: The heating and/or cooling elements directly contact
the process solution resulting in a faster heat-up and recovery rate.
- Minimal Downtime:
The SB heater exhibits long life. However, when replacement is necessary it
can be done more quickly, on-site and less expensively than repairs on many
other styles of baths.
- More Durable:
The fluoropolymer tank is virtually unbreakable.
- Warranty:
Standard one year.
- Temperature
Stability and Uniformity: The SB heater takes up the entire bottom of the
tank eliminating temperature gradients. Temperature range up to 180°C
depending on chemistry, concentration, etc.
SAFETY AND DESIGN
- Reliable:
Field-proven for years.
- Heater Integrity:
Patented N2 purge (patent numbers 4,553,024 - 4, 158,764). Heater
is continually swept clean and dry by a small purge of N, or CDA. This feature
removes detrimental moisture or diffused particulate matter thereby ensuring
maximum heater life and clean operation.
- Controls:
Easy to use pre-wired process control module.
- Operator Safety:
Heater protection is provided through electrical interlocks. i.e. (Standard
over-temperature thermocouple and liquid level sensor).
OPTIONS
- Drain connection and
valve.
- TCC fluoropolymer
cooling coil.
- Microprocessor
controller.
- Timer.
- Sparger plate.
- Magnetic stirrer
ELECTRICAL SERVICE
- Heater: 110 or 208
V, single phase 50/60 Hz.
- Three phase, custom
wattages and voltages available upon request.
