UP Series, Ultrapure Deionized Water Heaters

The Lufran^® UP Series Ultrapure DI Water Heater has been designed to deliver years of trouble-free, low maintenance operation. To date, over 1100 UP Series water heaters have been sold worldwide. The UP Series accommodates any temperature setting up to 100°C +/- 1°C and any flow rate.

The Lufran^® UP Series point-of-use, in-line system quickly heats DI water with the minimum amount of exposed surface area. An ultra-clean environment is provided with no metal-to-water contact. Wetted surfaces are of fluoropolymer (heater) and PVDF (liner). The UP Series incorporates Patented, all PTFE fluoropolymer high wattage heaters with a nitrogen purge feature. Included with the heater is a Process Control Module(s) which incorporates a digital PID controller and multiple safety features.

To read about the ADVANTAGES OF USING HOT DI WATER, click here.

OUTSTANDING FEATURES INCLUDE:

• Patented heater purge ensures heater integrity, longevity and temperature stability.
• Heaters are in direct contact with the DI water for fast response.
• Constant flow feature ensures that water is not allowed to stagnate, thereby preventing the buildup of contaminants. (DI water bleed available to inhibit bacterial/ fungal growth.)
• Compact modular design allows systems to be used independently or in combinations. Models from 7 to 260 Kilowatts.
• All instrumentation is isolated from the DI water.
• Accommodates any flow rate, temperatures up to 100°C and pressures up to 100 PSIG.

SAFETY FEATURES/ANNUNCIATORS

Every Lufran^® UP Series DI Water Heater is protected against accidental damage. The operator's safety is assured through a network of interlocking safety devices.

• Heater Purge Exhaust Monitor: The purge monitor analyzes the humidity level of the purge exhaust gas as it flows through the heating elements, ensuring heater integrity.
• Capacitance Liquid Level Sensor: Sensor mounted externally to the exit plumbing, ensures that a safe water level is maintained during heater operation.
• Internal Heater Monitor: A factory set over-temperature control device (OTCD) continuously monitors a sensor that is built into the heating element, ensuring that the heating element is operating within a safe temperature range.
• High Process Temperature Limiting Control: A factory set independent high process temperature limiting control monitors the heated DI water exiting the system to prevent excessive outlet temperature. This control uses an independent thermocouple and power relay to provide complete redundancy to the primary temperature control network.
• System Pressure Monitor: A factory set low pressure limiting control monitors the pressure of the incoming DI water supply to prevent heater operation during a low pressure condition that may result in the generation of steam.
• Temperature Control High Alarm: The process temperature controller's high alarm prevents heater operation above a preset maximum temperature.
• Optional UPDI-DAC control option available.
• Optional solid state relay upgrade available.

OPTIONS

• Custom Engineering is available for special wiring, color coding, Military Specification wiring, enclosures, instrument display outputs, special control signals and alarm interfaces.
• Chemraz^® or Viton^® "O" Ring Set.
• Digital Flow Indicator.
• Digital Resistivity Monitor.
• Ground Fault Relay.
• Heater Column Thermal Insulation Wrap.
• Microprocessor Based, Membrane Panel, Process Control Module.
• System Cabinet.
• RS232 Communication.

CONTROL

The control console contains illuminated switches, temperature controller, digital displays, LED safety interlocks and N₂ purge flow meter. The control console can be mounted with the heating column(s) or remote mounted in the cleanroom.  Optional UPDI-DAC control option available.

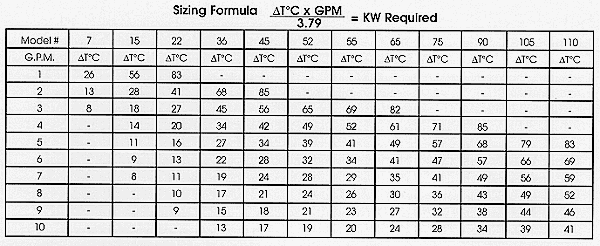

ELECTRICAL SPECIFICATIONS/PERFORMANCE

• Power: 208, 380 or 480 volt, three phase available. Other voltages available upon request. Amperage dependent on size of system ordered, voltage and phase.
• Temperature control: +/- 1 degree Celsius in a continuous flow state.
• Heater: 110 or 208 VAC, single phase 50/60 Hz.
• Three phase, custom wattages and voltages available upon request.

For more information, prices and availability please visit our contact page.

* Viton^® is a registered trademark of DuPont Dow Elastomers.
* Chemraz^Ò is a registered trademark of Greene, Tweed and Company.
